Set Top Box

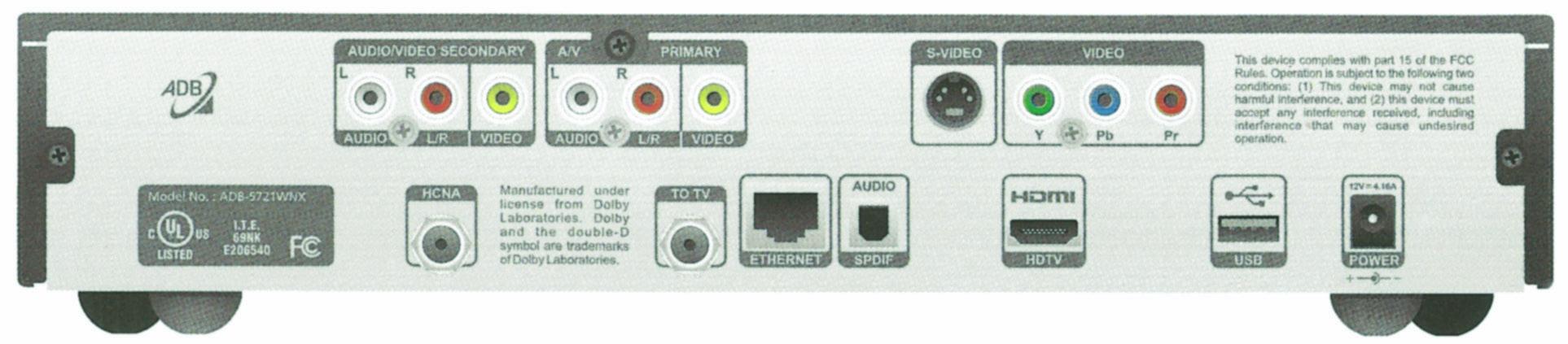

ADB 5721 WNX Set Top Box

5 6 7 8 9 10 11

1 2 3 4

1. Secondary Video/Stereo Audio R/L (Video/Audio Left/Audio Right) Connects the set top box to your TV or VCR to provide good quality video and stereo audio.

2. Primary Video/Stereo Audio R/L (Video/Audio Left/Audio Right) Connects the set top box to your TV or VCR to provide good quality video and stereo audio.

3. S-Video Connects the set top box to your TV to provide high-quality video - provides video only.

4. Component (HD Analog) Output (Video/Audio Left/Audio Right) Connects the set top box to your TV or VCR to provide high defnition quality video and stereo audio.

5. HCNA Coax Port Connects the set top box to a HCNA wall socket using coax wiring.

6. RF Modulated Output to TV Connects the set top box to your TV using a standard coax cable - provides audio and video.

7. Ethernet Connects the set top box to the video service using a CAT5 Ethernet cable.

8. S/PDIF Connects the set top box to a home theater system to provide surround sound audio - provides audio only.

9. HDMI (High Defnition Media Interface) Connects the set top box to your HDTV using an HDMI cable - provides audio and video. 10. USB (Universal Serial Bus) Connects the set top box to technician’s equipment and other devices.

11. Power Adapter Provides power to the set top box
